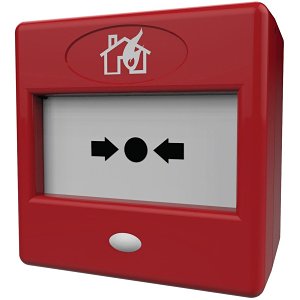

The FX203 which is a Fire Alarm System a weatherproof version. The FX203 are compatible with the Eaton range of conventional fire systems. These conventional call points are attractively designed, simple to install and are supplied as standard with a frangible glass element and a test key for ease of maintenance.

A comprehensive range of accessories are available to maximise the functionality of the call point for particular applications.

Features and benefits

• Fast fit clip on front cover
• Wide range of accessories
• Heavy duty terminals
• Two models available:
– Internal
– Weatherproof
• Quick and simple to install
• Single tool for test and access
• Robust construction
• IP65 version available
• Easy to maintain/service

Installation

1. Surface call point has standard rear BESA fixing facilities. In addition, back box can accept top or bottom surface entry cables.
2. Call point has test facility via special test key to prevent un authorised operation.
3. Insertion of test key for test purposes and for cover removal is at bottom of call point to facilitate ease of access when mounted next to door architrave.
4. Test key is dual function, used to test call point operation by simulating activation and also to allow removal of clip on cover to gain access to element.
5. Element is held in place by clip on self locking cover which can only be removed by use of a special tool (call point test key).
6. Separate zone in and zone out terminals are provided for all connections.
7. Surface/flush call points are IP24D, weatherproof is IP65.
